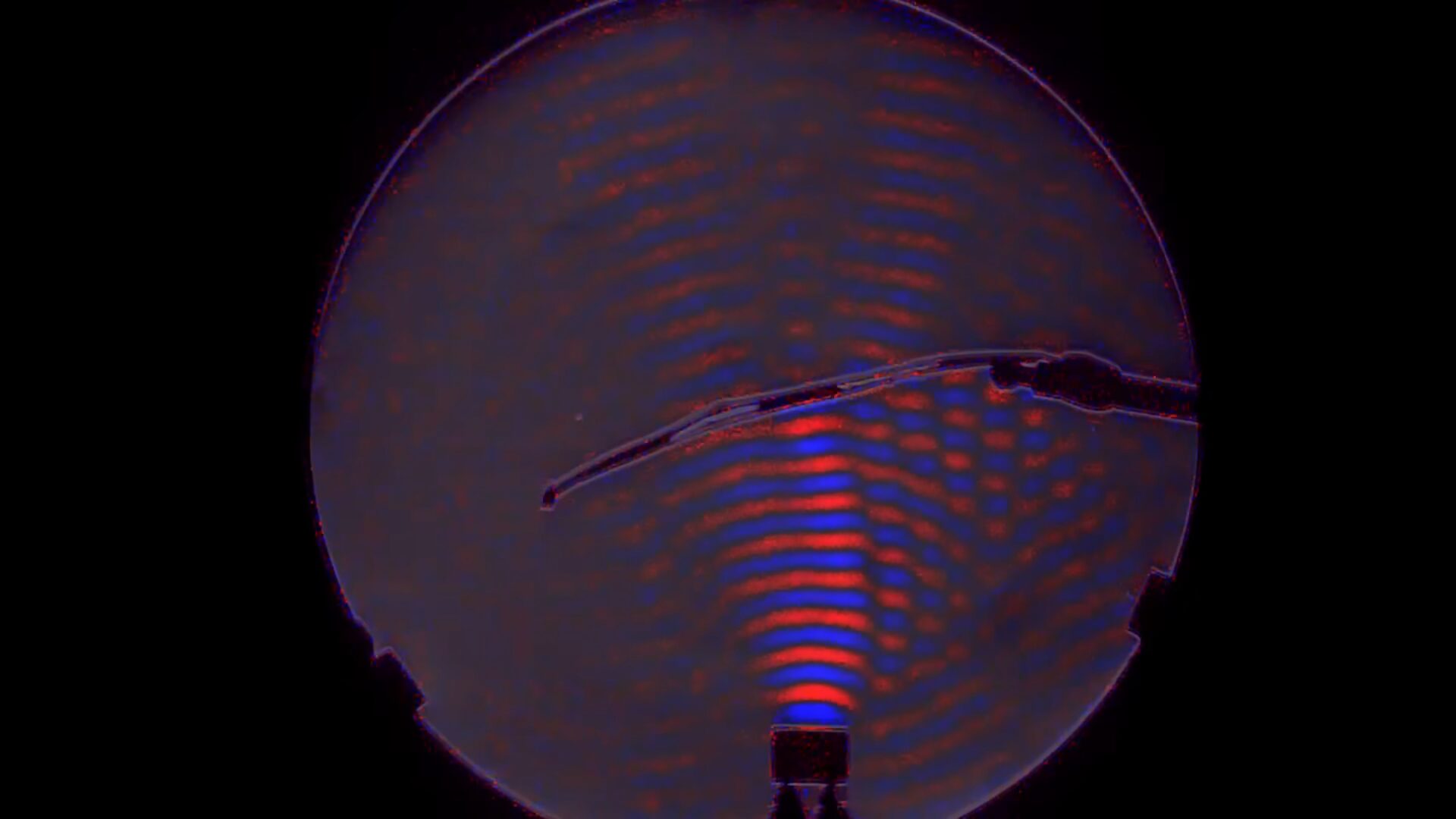

A new innovation in visual technology allows enthusiasts to capture sound waves for under $200. The project, spearheaded by a creator known as PlasmatronX, utilizes a unique camera system designed to visualize sound waves, highlighting both constructive and destructive interference. This technique offers a fascinating glimpse into the world of sound, blending audio and visual elements in an unprecedented way.
Innovative Imaging Technique
Traditional imaging methods like Schlieren imaging typically track air currents influenced by heat. In contrast, PlasmatronX has adapted this concept to focus on the varying densities of air caused by sound pressure waves. By employing a concave mirror, the setup amplifies the refraction of these densities, allowing for a striking visual representation of sound.
Creating this system is no simple task. Critical modifications are required, including alterations to audio circuits to remove high-pass filters, which can impede sound capture. Additionally, the LED flash must be overvolted to enable rapid strobe functionality, essential for synchronizing audio and visual elements. These adjustments are key to successfully capturing sound in real time.
Accessible Technology for Experimentation
For those eager to experiment with this innovative technology, PlasmatronX has made the project available on GitHub. This platform allows users to access the necessary files and instructions to replicate the sound visualization system. Notably, the affordability of the project—under $200—makes it accessible to a broader audience, including hobbyists and students interested in the intersection of sound and visual arts.
While this method of visualizing sound waves might be new to many, it is part of a larger trend in creative imaging. As technology continues to evolve, projects like PlasmatronX showcase the potential for innovative approaches to understanding and interpreting the world around us.
For those interested in exploring the captivating realm of sound visualization, this project represents an exciting opportunity to delve into the science and artistry of sound.
